Easy steps to stairs


Need a neat and easy to install staircase? The Terraforce 4×4 Step block, a light, dry-stack concrete unit is ideally suited for efficient and economical steps, either in combination with the Terraforce L range blocks or for free-standing staircases.

step blocks for easy staircase

General guidelines

The step can be as wide as you wish; four blocks in a row will result in a flight 800 mm wide. With an overlap of 50 mm, a single block tread of 350 mm and a riser of 150 mm is obtained, although a double row will work well in a gentle slope and where the steps curve. After positioning the blocks, push mortar into the hollow of each block, but only if the blocks are supplied without the internal T-bar, dependent on the manufacturer.

Compact the soil behind each step and ensure that the ground is absolutely level before you start laying the next row of blocks. In some instances, it may be advisable to place a bedding layer of stabilised sand below the blocks (5% cement added).

Technical notes on installation of seating arenas: Notes on seating

NB: these notes apply to public seating arenas with the 4×4 Step blocks, a popular use of the blocks that developed over the last 10 years.

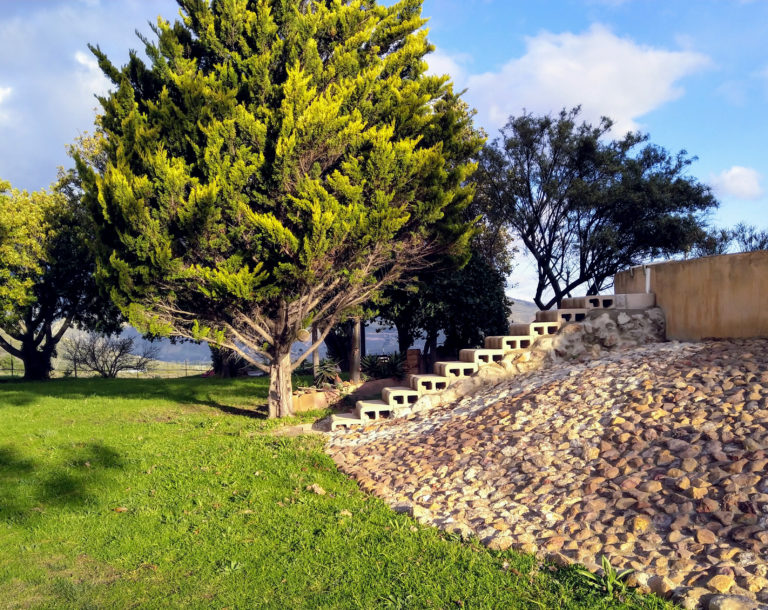

Step by Step staircase, Farm Olivia

In March this year, a farmer in in the Breede River Valley, Western Cape, South Africa, required some steps up to his concrete water reservoir. He chose to use the 4×4 Step blocks to create a comfortable step of stairs that allow him and his family better access to the water.

Using builder’s rubble for a foundation, well compacted

Using builder’s rubble for a foundation, well compacted

Spread dry sand cement mix and spray moderately with water

Spread dry sand cement mix and spray moderately with water

Compact moist sand cement mix and level out for next layer of steps

Compact moist sand cement mix and level out for next layer of steps


Carefully checking the level of each block

Carefully checking the level of each block

Packing the blocks row by row

Packing the blocks row by row


Rocks packed dry and grouted with mortar to provide side support

Rocks packed dry and grouted with mortar to provide side support

  Side stopes to be stabilised, here with packed rocks to be grouted with dry sand-cement mix, brushed into gaps before being moistened by a light spray with water

Side stopes to be stabilised, here with packed rocks to be grouted with dry sand-cement mix, brushed into gaps before being moistened by a light spray with water

Approved by Duck Duck, the Egyptian Goose

Approved by Duck Duck, the Egyptian Goose
