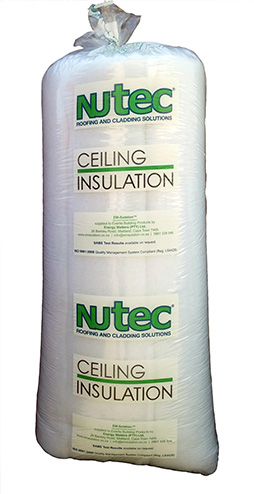

Ceiling Insulation

Nutec Ceiling Insulation exhibits excellent thermal insulation properties. It satisfies all the SANS requirements and is suitable for use in areas defined by SANS 10177-10 : B / B1/2.

Explanation of abbreviations: B: Combustible. B1: No flame spread. 2: Occupancy class – All occupancies except for the proviso listed in SANS 10400-T. Nutec Ceiling Insulation is supplied to Everite Building Products by Energy Matters (PTY) Ltd., EM-Sulation, 26 Berkley Road, Maitland, Cape Town 7405.

Request a quote

Packed in compressed rolls allowing for easy handling and storage
Lightweight and easy to transport and install
Manufactured from recycled PET (Polyethylene terephthalate (PET) is safe plastic used for beverage bottles.)
Hygienic, safe and odourless. No irritating itching from fibres
Suitable as insulation to all types ceilings and as a top up over existing applications
Compatible with all types of building materials
Non corrosive action with steel, copper or aluminium
Non-hygroscopic, does not absorb moisture
Will not breed or promote fungi
Will not sustain rodents or vermin
VOC free
Zero% OPD
100% Recyclable
No CFC™s or HCF™s
Non-irritant – itch-free

Thermal Properties

Nutec Ceiling Insulation exhibits low thermal conductivity – a measure of a material™s ability to conduct / transfer heat (K-value). Low thermal conductivity is ideal when reduced heat build-up in summer and heat loss in winter is required. Everite Ceiling Insulation K-Value is influenced by the density and thickness of the product. Generally the thicker and more dense the product the better resistance it will have to temperature and sound transmission.

Nutec Ceiling Insulation in its finished form comprises many pockets of cell like fibre structures which contain air. The material’s ability to resist the flow of heat through it (R-Value) is also attributed to stable (dense) non-moving entrapped air. Air is recognised as a poor conductor and presents a perfect insulation barrier. The higher the R-value the better the material’s ability to resist the flow of heat.

Mechanical, Physical and Thermal Properties

Roll Size	Density	Thickness	Thermal resistance
Length x Width (mm)	Approx.kg / m³	mm	mÂ²Â·K/W
10000 x 1200 (12 m²)	7,5	40	0.8
10000 x 1200 (12 m²)	7	55	0.92
8000 x 1200 (9.6 m²)	10	75	1.50
6000 x 1200 (7.2 m²)	10	100	2.0
5000 x 1200 (6 m2)	10	135	2.7

* Thermal conductivity tested according to ASTM C518 and T0178-WI-015. Report No™s. 2020.5553-1/2/3
