Sliding Folding Doors Systems

Multifold 30C

Top hung, centre folding hardware for interior timber or aluminium doors.

Multifold 30E

Top hung, end folding hardware for interior timber or aluminium doors.

Vistafold 30 TU

Bottom rolling sliding and folding hardware for weather resistant timber windows.

Foldaside 40

Top hung sliding and folding hardware for interior aluminium and timber doors. Product Application

Centafold 50

Top hung sliding hardware for interior aluminium and timber doors.

Foldaside 60

Top hung sliding and folding hardware for interior aluminium and timber doors.

Foldaside 60GL

Top hung sliding and folding hardware for interior aluminium and timber doors.

Vistafold 70A

Bottom rolling sliding and folding hardware for weatherproof aluminium doors.

Vistafold 70T

Bottom rolling sliding and folding hardware for timber doors in a rebated frame.

Foldaside 90

Top hung sliding and folding hardware for interior and exterior aluminium and timber doors.

Foldaside 90 GL

Top hung sliding and folding hardware for frameless interior and exterior folding doors.

Vistafold Mullion

Heavy duty bottom rolling sliding and folding hardware for timber doors in a rebated frame.

Centafold 100

Top hung sliding hardware for interior aluminium and timber doors.

Partitionfold 100

Top hung sliding and folding hardware for interior aluminium and timber doors.

Centafold 150

Top hung sliding hardware for interior aluminium and timber doors.

Partitionfold 150

Top hung sliding and folding hardware for interior aluminium and timber doors.

Multifold 30C

  • Galvanised or stainless steel ball-bearing hangers
  • For doors or serving hatches
Multifold 30E
  • Galvanised or stainless steel ball-bearing hangers
  • Equal width door leaves
  • For doors or serving hatches

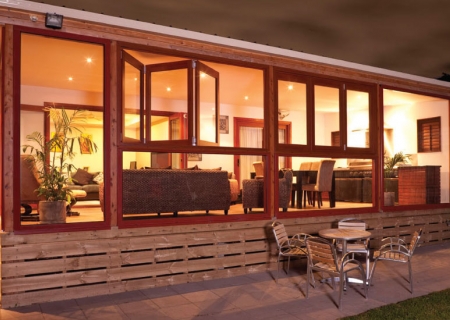

Vistafold 30 TU
  • Fully rebated frame and sashes for weather resistance
  • Equal sized sashes
  • Smooth operation
  • Non-corrosive hardware
Foldaside 40
  • Strong aluminium top track
  • End hung leaves
  • Quality proven hardware
  • End pivot for equal leaves

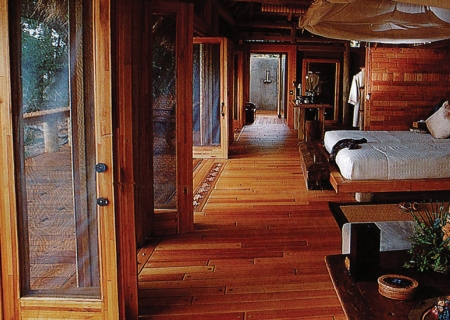

Centafold 50
  • Strong aluminium top track
  • Centre hung leaves
  • Quality proven hardware
Foldaside 60
  • Strong aluminium top track
  • End hung leaves
  • Quality proven hardware
  • End pivot for equal leaves
Foldaside 60GL
  • Strong aluminium top track
  • Centre and end hung leaves
  • Quality proven hardware
Vistafold 70A
  • Fully weatherproof system (tested to AAAMSA A1)
  • Equal width leaves
  • Quality proven hardware
  • Uses standard aluminium shopfront door profiles
  • Non corrosive hardware
Vistafold 70T
  • Rebated frame and doors for weather resistant applications
  • Equal width leaves
  • Hardware concealed in door
  • Non corrosive hardware
Foldaside 90
  • Strong aluminium top track
  • End hung doors
  • Quality proven hardware
  • End pivot for equal doors
Foldaside 90 GL
  • Strong aluminium top track
  • Centre and end hung doors
  • Quality proven hardware
Vistafold Mullion
  • Fully weatherproof system (tested to AAAMSA A1)
  • Equal width leaves
  • Quality proven hardware
  • Uses standard aluminium shopfront door profiles
  • Non corrosive hardware
Centafold 100
  • Strong aluminium top track
  • Centre hung leaves
  • Quality proven hardware
Partitionfold 100
  • Strong aluminium top track
  • Centre hung leaves
  • Quality proven hardware
  • No floor channel required
Centafold 150
  • Strong aluminium top track
  • Centre hung leaves
  • Quality proven hardware
Partitionfold 150
  • Strong aluminium top track
  • Centre hung leaves
  • Quality proven hardware
  • No floor channel required

Multifold 30C

  • Max leaf mass: 30kg
  • Max leaf height: 2400mm
  • Max leaf width: 800mm
  • Leaf thickness: 32-44mm
  • Recommended: 1½, 2½, 3½, 4½, 5½, 6½ or max 7½ leaves hinged together and to an end pivot
  • Bottom guiding is recommended for stability. No swing leaves

The area of a single sliding leaf should be related to all other factors.

Multifold 30E

  • Max leaf mass: 30kg
  • Max leaf height: 2400mm
  • Max leaf width: 600mm Leaf thickness: 32-44mm

Recommended: 2 or 4 leaves hinged together and to an end pivot. For 2 leaves, bottom guiding is optional. For 4 leaves, bottom guiding is recommended. No swing leaves.

The area of a single sliding leaf should be related to all other factors.

Vistafold 30 TU

  • Max sash mass: 30kg
  • Max sash height: 1500mm
  • Max sash width: 600mm
  • Sash thickness: 32mm

Recommended: 3 or max 5 sashes hinged together and to the frame, folding either way.

The area of a single sliding leaf should be related to all other factors.

Foldaside 40

  • Max leaf mass: 40kg
  • Max leaf height: 2400mm
  • Max leaf width: 900mm Leaf thickness: 44mm
  • Max 5 leaves hinged together, folding either way

The area of a single sliding leaf should be related to all other factors

Centafold 50

  • Max door mass: 50kg
  • Max door height: 2400mm
  • Max door width: 1000mm
  • Door thickness: 44mm
  • Max 7½ leaves hinged together and to pivot

The area of a single sliding leaf should be related to all other factors.

Foldaside 60

  • Max leaf mass: 60kg
  • Max leaf height: 2700mm
  • Max leaf width: 900mm Leaf thickness: 44mm
  • Max 5 leaves hinged together, folding either way

The area of a single sliding leaf should be related to all other factors.

Foldaside 60GL

  • Max leaf mass: 60kg
  • Max leaf height: 2400mm
  • Max leaf width: 800mm
  • Glass thickness: 10/12mm Toughened glass
  • Max 6 leaves hinged together and to pivot

The area of a single sliding leaf should be related to all other factors.

Vistafold 70A

  • Hardware fits standard 44mm shopfront door profiles with Vistafold frames
  • Max leaf mass: 70kg
  • Max leaf height: 2700mm
  • Max leaf width: 900mm

Recommended: 2,3,4 or max 5 leaves hinged together.

The area of a single sliding leaf should be related to all other factors.

Vistafold 70T

  • Max leaf mass: 70kg
  • Max leaf height: 2700mm
  • Max leaf width: 900mm

Recommended: 2,3,4 or max 5 leaves hinged together and to the frame, folding either way.

The area of a single sliding leaf should be related to all other factors.

Foldaside 90

  • Max leaf mass:90kg
  • Max leaf height: 3500mm
  • Max leaf width: 900mm Leaf thickness: Min 44mm
  • Max 5 leaves hinged together with pivot

Note: When pivot sets are replaced by hinges, particular attention should be paid by the joiner or aluminium fabricator to leaf sizes.

The area of a single sliding leaf should be related to all other factors.

Foldaside 90 GL

  • Max leaf mass: 90kg
  • Max leaf height: 2700mm
  • Max leaf width: 900mm
  • Glass thickness: 10/12mm Toughened glass
  • Max 6 leaves hinged together and to pivot

The area of a single sliding leaf should be related to all other factors.

Vistafold Mullion

  • Hardware fits standard 44mm shopfront door profiles with Vistafold frames
  • Max leaf mass: 90kg
  • Max leaf height: 3500mm
  • Max leaf width: 900mm

Recommended: 3,5 or max 7 leaves hinged together.

The area of a single sliding leaf should be related to all other factors.

Centafold 100

  • Max door mass: 100kg
  • Max door height: 2700mm
  • Max door width: 1200mm
  • Door thickness: 44mm
  • Max 7½ leaves hinged together and to pivot

The area of a single sliding leaf should be related to all other factors.

Partitionfold 100

  • Max leaf mass: 100kg
  • Max leaf height: 3000mm
  • Max leaf width: 1200mm
  • Leaf thickness: 44mm
  • Leaves hinged together in pairs and sliding either way with half-width locking leaf.

The area of a single sliding leaf should be related to all other factors.

Centafold 150

  • Max door mass: 150kg
  • Max door height: 3500mm
  • Max door width: 1500mm
  • Door thickness: 44mm
  • Max 7½ leaves hinged together and to pivot

The area of a single sliding leaf should be related to all other factors.

Partitionfold 150

  • Max leaf mass: 150kg
  • Max leaf height: 3500mm
  • Max leaf width: 1200mm
  • Leaf thickness: min 44mm

The area of a single sliding leaf should be related to all other factors.

Multifold 30C

  • 100S Steel or 100A aluminium top track
  • 100MF Hangers
  • 40/21N Guides
  • 21A Aluminium channel
  • MF Pivot set
  • 503NA Flush pull handle
  • 442S or 442B Butt hinge
  • 452 Holdback catch
  • 455 Roller catch
  • 488×6 Flush bolt
NOTE:
  • All fittings available in stainless steel for all coastal applications.
  • Various finishes available.
Multifold 30E
  • 100S Steel or 100A aluminium top track
  • 100MF Hangers
  • 40/21N Guides
  • 21A Aluminium channel
  • MF Pivot set
  • 503NA/GA Flush pull handle
  • 442S or 442B Butt hinged
  • 452 Holdback catch
  • 455 Roller catch
  • 488x150mm Flush bolt
NOTE:
  • All fittings available in stainless steel for all coastal applications.
  • Various finishes available.
Vistafold 30 TU
  • 21A Aluminium or 21B brass guide channel
  • 233×6 Top guide (NA/GA)
  • 233×4 Bottom roller (NA/GA)
  • 233×1 Hinge (NA/GA)
  • 814A Aluminium or 814LB brass bottom track
  • 503NA/GA Flush pull handle
  • 442B Brass butt hinge
  • 443A Aluminium or 443B brass butt hinge
  • 452 Holdback catch
  • 455 Roller catch
  • 488x150mm Flush bolt
  • 86SKH Hinge handle
NOTE:
  • All fittings available in stainless steel for all coastal applications.
  • Various finishes available.
  • Available in butt hinges only.
  • Various finishes available.
Foldaside 40
  • 200P Pivot set
  • 200TA Aluminium top track
  • 200FA/FT Hangers
  • 19A Aluminium or 19B brass guide channel
  • 200/19N Bottom guide
  • 443B Brass or 443A aluminium hinges
  • 868×1 Aluminium door or 866×1 timber door hinge
  • VSKH Aluminium door or 86SKH timber door hinge handle
  • 503NA/GA Flush pull handle
  • 452 Holdback catch
  • 455 Roller catch
  • 488×150 Flush bolt (timber doors)
  • 477LF Single or 477 Double throw flush bolt (aluminium doors)
  • 970 Deadbolt lock (timber doors)
NOTE:
  • When pivot sets are replaced by hinges, particular attention should be paid by the joiner or aluminium fabricator to leaf sizes.
  • All fittings available in stainless steel for all coastal applications.
  • Various finishes available.
Centafold 50
  • 200P Pivot set
  • 200TA Aluminium top track
  • 200TPT/TPA Hangers
  • 19A Aluminium or 19B brass guide channel
  • 40/19N Bottom guide
  • 443B Brass or 443A Aluminium hinges
  • 868×1 Aluminium door or 866×1 timber door hinge
  • VSKH Aluminium door or 86SKH timber door hinge handle
  • 503NA/GA Flush pull handle
  • 452 Holdback catch
  • 488×150 flush bolt (timber doors)
  • 477LF Single or 477FR double throw flush bolt (aluminium doors)
  • 970 Deadbolt lock (timber doors)
NOTE:
  • When pivot sets are replaced by hinges, particular attention should be paid by the joiner or aluminium fabricator to leaf sizes.
  • All fittings available in stainless steel for all coastal applications.
  • Various finishes available.
Foldaside 60
  • 400P Pivot set
  • 400TA Aluminium top track
  • 400FT/400FA Hangers
  • 19A Aluminium or 19B brass guide channel
  • 400/19N Bottom guide
  • 443B Brass or 443A aluminium hinges
  • 868×1 Aluminium door or 866×1 timber door hinge
  • VSKH Aluminium door or 86SKH timber door hinge handle
  • 503NA/GA Flush pull handle
  • 452 Holdback catch
  • 455 Roller catch
  • 488×150 Flush bolt (timber doors)
  • 477LF Single or 477FR Double throw flush bolt (aluminium doors)
  • 970 Deadbolt lock (timber doors)
NOTE:
  • When pivot sets are replaced by hinges, particular attention should be paid by the joiner or aluminium fabricator to leaf sizes.
  • All fittings available in stainless steel for all coastal applications.
  • Various finishes available.
Foldaside 60GL
  • 400TA Aluminium top track
  • 19A Aluminium or 19B brass guide channel
  • 400GLF Hangers
  • GL/19N Guide
  • 400P Pivot set for pivot doors
  • GL Top and bottom rail with cover plates
  • 5025 Rail lock and euro cylinder
  • 122 Brush welt
  • ECH End cap hinge
  • ECHH End cap hinge handle
  • P10/12 Glass h-type seals
  • GL2 Slide bolt
NOTE:
  • This system is not waterproof – only weather resistant.
  • Selected fittings available in stainless steel.
  • Various finishes available.
Vistafold 70A
3/5 LEAF:
  • 868×6 Top guides
  • 870×1 Bottom rollers
  • 868×1 Intermediate hinges
  • VSKH Vista hinge handle
2/4 LEAF:
  • 871×5 Top end guides
  • 871×2 Bottom end rollers
  • 871×7 Top meeting guides
  • 871×3 Bottom meeting rollers
  • 871×1 Intermediate hinges
  • 871VSK Hinge handle
FITTINGS:
  • VF01 Side frame
  • VF02 Top frame
  • VF03 Bottom frame
  • CL34 Bottom track
  • 868B Bubble seal
  • DO90 Woolpile
  • 477L/FR Double throw flush bolt
  • EB1 Holdback catch
NOTE:
  • All fittings suitable for all coastal applications in butt or sinkless hinges.
  • Various finishes available.
Vistafold 70T
3/5 LEAF:
  • 866×6 Top guides
  • VTx4 Bottom rollers
  • 866×1 Intermediate hinges
  • 86SKH Hinge handle
2/4 LEAF:
  • TE40x5 Top end guide
  • TE40x2 Bottom end roller
  • TE40x7 Top meeting guide
  • TE40x3 Bottom meeting guide
  • 871×1 Intermediate hinges
FITTINGS:
  • 19A Aluminium or 19L Brass
  • Top guide channel
  • 815LB Brass bottom track
  • 503NA/GA Flush pull handles
  • 488×150 Flush bolt
Foldaside 90
  • 600P Pivot set
  • 600TA Aluminium top track
  • 600FA Hangers
  • 19LA Aluminium or 19B brass guide channel
  • 600/19N Bottom guide
  • 443B Brass or 443A aluminium hinges
  • 868×1 Aluminium door or 866×1 timber door hinge
  • VSKH Aluminium door or 86SKH timber door hinge handle
  • 503NA/GA Flush pull handle
  • 452 Holdback catch
  • 455 Roller catch
  • 488×150 Flush bolt (timber doors)
  • 477LF Single or 477FR double throw flush bolt (aluminium doors)
  • 970 Deadbolt lock (timber doors)
NOTE:
  • When pivot sets are replaced by hinges, particularattention should be paid by the joiner or aluminium fabricator to leaf sizes.
  • All fittings available in stainless steel for coastal applications.
  • Various finishes available.
Foldaside 90 GL
  • 600TA Aluminium top track
  • 19A Aluminium or 19B brass guide channel
  • 600GL Hangers
  • GL/19N Guide
  • 600GLP Pivot set for pivot doors
  • GL top and bottom rail with cover plates
  • 5025 Rail lock and euro cylinder
  • 122 Brush welt
  • ECH End cap hinge
  • ECHH End cap hinge handle
  • P10/12 Glass h-type seals
  • GL2 Slide bolt
NOTE:
  • This system is not waterproof – only weather resistant.
  • Selected fittings available in stainless steel.
  • Various finishes available.
Vistafold Mullion

3/5/7 LEAF:
  • VMx6 Top guides
  • VMx4 Bottom rollers
  • 868×1 Intermediate hinges
  • VSKH Hinge handle
FITTINGS:
  • VF01 Side frame
  • VF02 Top frame
  • VF03 Bottom frame
  • VM Heavy duty Mullion
  • 868B Bubble seal
  • DO90 Woolpile
  • 477L/FR Double throw flush bolt
  • EB1 Holdback catch
  • 503NA/GA Flush pull handle
NOTE:
  • All fittings suitable for coastal applications.
  • Available in natural, white, black & bronze.
  • Various finishes available.
Centafold 100
  • 400P Pivot set
  • 400TA Aluminium top track
  • 400TPT/TPA Hangers
  • 19A Aluminium or 19B brass guide channel
  • 40/19N Bottom guide
  • 443B Brass or 443A Aluminium hinges
  • 868×1 Aluminium door or 866×1 timber door hinge
  • VSKH Aluminium door or 86SKH timber door hinge handle
  • 503NA/GA Flush pull handle
  • 452 Holdback catch
  • 488×150 Flush bolt (timber doors)
  • 477LF Single or 477FR Double throw flush bolt
  • 970 Deadbolt lock (timber doors)
NOTE:
  • When pivot sets are replaced by hinges, particular attention should be paid by the joiner or aluminium fabricator to leaf sizes.
  • All fittings available in stainless steel for all coastal applications.
  • Various finishes available.
Partitionfold 100
  • 400TA Aluminium top track
  • 400TP/A Hanger for aluminium door or 400TP/T Hanger for timber door
  • 443B Brass or 443A aluminium hinges
  • 868×1 Aluminium door or 866×1 timber door hinge
  • VSKH Aluminium door or 86SKH timber door hinge handle
  • 503NA/GA Flush pull handle
  • 452 Holdback catch
  • 455 Roller catch
  • 488×150 Flush bolt (timber door) or 477L Flush bolt (aluminium doors)
  • 970 Deadbolt lock (timber door)
NOTE:
  • All fittings available in stainless steel for coastal applications.
  • Various finishes available.
Centafold 150
  • 600P Pivot set
  • 600TA Aluminium top track
  • 600TPB Hangers
  • 19A Aluminium or 19B brass guide channel
  • 40/19N Bottom guide
  • 443B Brass or 443A Aluminium hinges
  • 868×1 Aluminium door or 866×1 timber door hinge
  • VSKH Aluminium door or 86SKH timber door hinge handle
  • 503NA/GA Flush pull handle
  • 452 Holdback catch
  • 488×150 Flush bolt (timber doors)
  • 477LF Single or 477FR double throw flush bolt (aluminium doors)
  • 970 Deadbolt lock (timber doors)
NOTE:
  • When pivot sets are replaced by hinges, particular attention should be paid by the joiner or aluminium fabricator to leaf sizes.
  • All fittings available in stainless steel for all coastal applications.
  • Various finishes available.
Partitionfold 150
  • 600TA Aluminium top track
  • 600TF Hanger
  • 19LA Aluminium guide channel
  • 443B Brass or 443A aluminium hinges
  • 503NA/GA Flush pull handle
  • 868×1 Aluminium door or 866×1 timber door hinge
  • VSKH Aluminium door or 86SKH timber door hinge handle
  • 452 Holdback catch
  • 455 Roller catch
  • 488×150 Flush bolt (timber door) or 498LF Flush bolt (aluminium doors)
  • 970 Deadbolt lock (timber door)
NOTE:
  • All fittings available in stainless steel for coastal applications.
  • Various finishes available.

Multifold 30c

Multfold 30E

Partitionfold 100

Partitionfold 150

Vistafold 30TU

Vistafold 70A

Vistafold Mullion

Foldaside 90GL

Vistafold 70T

Centafold 50

Centafold 100

Centafold 150

Foldaside 40

Foldaside 60

Foldaside 60GL

Foldaside 90
