Building Product Brochures & Datasheets

Above-ground Drainage

GEBERIT PRODUCT PORTFOLIO

GEBERIT PRODUCT PORTFOLIO • Geberit owns 25 education centres worldwide • Every year approximately 30,000 plumbers, architects and planners are trained on Geberit systems and software • Geberit is interested in passing on knowledge and a vivid exchange of experience • Success at the international level is a matter of dialogue • Geberit relies on partnership in business relations and fairness in interaction with competitors and associations

GEBERIT DRAINAGE SYSTEMS SAFE BET FOR CLEAN DRAINS

GEBERIT DRAINAGE SYSTEMS SAFE BET FOR CLEAN DRAINS The piping systems of Geberit stand for know-how in the field of sanitary technology. From the connection to the water supply through to the distribution on the floor to the consumers, all the way to the drainage of roofs and buildings into the public sewage system, you can rely on Geberit systems. With Geberit, you can provide your customers with state-of-theart technological solutions in the areas of hydraulics, fire protection and sound insulation, reliability and environmental properties.

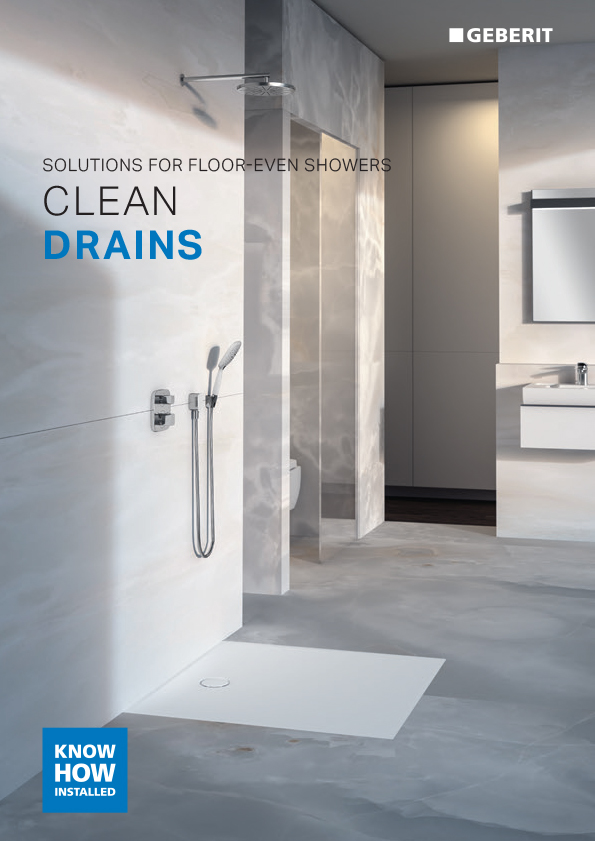

FLOOR-EVEN SHOWERS | GEBERIT

FLOOR-EVEN SHOWERS – GEBERIT CLEAN DRAINS floor-even showering drainage with clear sanitary engineering and plumbing know-how products.

Sand Trap | SDT 500

Sand Trap SDT 500 Technical Drawing and Specification

KESSEL Product Catalogue 2020 - Eurodrain Technology

KESSEL Product Catalogue 2020 – backwater valves, hybrid lifting stations, lifting stations, drains and channels, separators.

Ogee Gutters

The ultimate seamless gutter. WeatherMaster Ogee (Old Gothic) gutters are roll-formed on site from our mobile gutter machine in exact made to measure lengths. Sun Control Products offer a complete service, from the on-site assessment to breaking down and removing old gutters…

Klip-Lok 406

Global Roofing Solutions Klip-Lok 406 roofing roll-formed in continuous lengths. Klip-Lok 406 sheets should be suitably supported clear of the ground. The profile is roll-formed from certified steel. The profile shall have 3 trapezoidal ribs at 203mm centres giving a nett cover of 406mm. The male rib shall have spurs to ensure a positive double interlocking action at side-laps. Each pan shall incorporate two stiffener ribs.

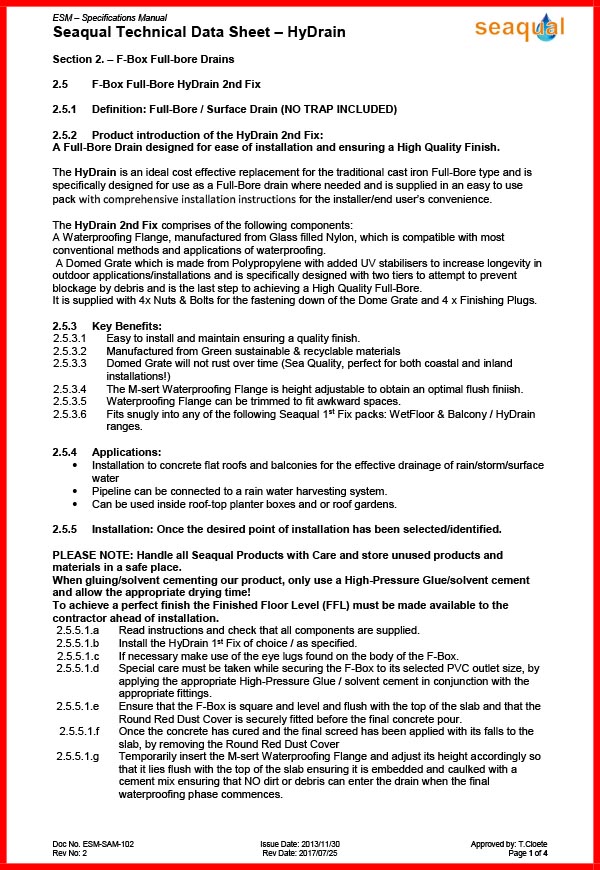

Seaqual HyDrain F-Box Full-Bore HyDrain 2nd Fix

The HyDrain 2nd Fix comprises of the following components: A Waterproofing Flange, manufactured from Glass-filled Nylon, which is compatible with most conventional methods and applications of waterproofing. A Domed Grate which is made from Polypropylene with added UV stabilisers to increase longevity in outdoor applications/installations and is specifically designed with two tiers to attempt to prevent blockage by debris and is the last step to achieving a High-Quality Full-Bore. It is supplied with 4x Nuts & Bolts for the fastening down of the Dome Grate and 4 x Finishing Plugs.

Valsir Rainplus® Siphonic Rainwater Drainage System

Rainplus is a siphonic rainwater drainage system designed to reach maximum drainage performance with the lowest levels of water accumulation on the roof. Rainplus allows the entire quantity of rainwater to be directed to any part of the building enabling the implementation of the most modern rainwater harvesting systems…

The Bain Drain Brochure

The Bain Drain Brochure The Bain Drain is a truly hygienic flush-fitting floor drain that eliminates odours and air-born infections by its unique water trap design. Suitable for: Abattoirs, cattle stalls, garages, food factories, fire stations, horse stables, canneries, dairies, car wash bays, change rooms and gyms.

Grease Trap | GTS 2L

Technical Drawing – Grease Trap GTS 2/L. The grease trap is designed for both domestic and commercial applications, and is manufactured in 304 and 316 grade stainless steel 1.2mm…

Sand Trap | SDT 300 | Grease Traps

Technical Drawing – Sand Trap SDT 300 by Grease Traps

Seaqual RainDrain Lite: Technical Data Sheet

The catchpit that blends into the surrounding paving. The RainDrain Lite consists of a body, which acts as a sump, with a Polypropylene grate and a high-density foam seal. RainDrain Lite is not recommended for areas with vehicular traffic. This is for pedestrian foot traffic only.

Seaqual Product Catalogue

Seaqual product catalogue: floor drains, long term cost-saving products, pipe anchors and channel drainage systems. The range includes WetFloor Drain, TileGrate, LoLo Drain, Grate & Waste, DrainMate, HyDrain, BalconyDrain, RainDrain, VitylDrain, CeilingSaver, HiddenHatch, BuddyBats, BuddyClips, 4All…

Grease Trap | GTS 1L

Technical Drawing – Grease Trap GTS 1/L. The grease trap is designed for both domestic and commercial applications and is manufactured in 304 and 316 grade stainless steel 1.2mm…

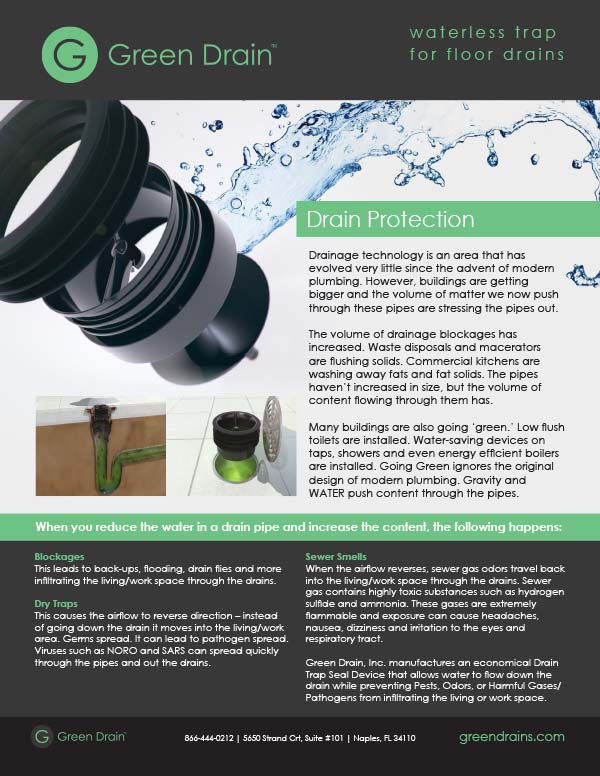

Green Drain | Waterless trap for floor drains | Herbish Drainage Systems

The waterless trap for floor drains – Green Drain, Inc. manufactures an economical Drain Trap Seal Device that allows water to flow down the drain while preventing Pests, Odours, or Harmful Gases/ Pathogens from infiltrating the living or workspace.

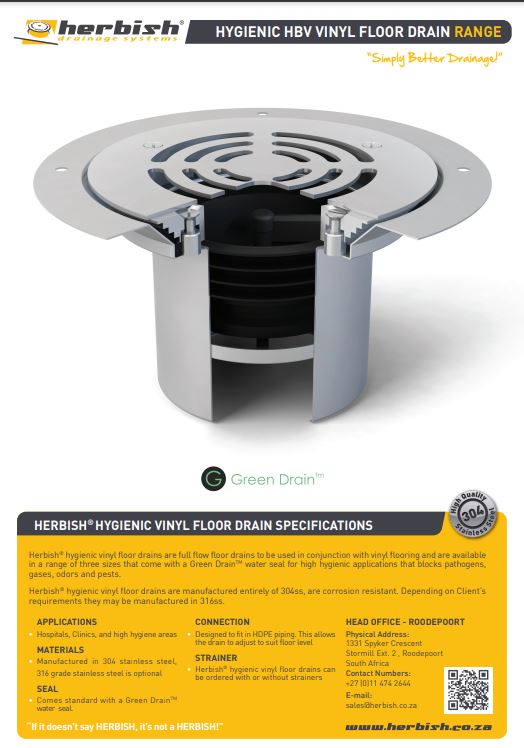

HB125 Vinyl | Floor Drains | Herbish Drainage Systems

Vinyl Floor Drains The HERBISH® HB125 Vinyl range of floor drains • Suitable for vinyl floors • Available in round flange only • Designed for hospitals, domestic and commercial wet room design applications

Technodrain - Technologies for linear drainage

All Technodrain units are equipped with lateral and vertical drains up to Ø 250 (Magnum). It just takes a few minutes to hook up the drains to the runoff pipes.

Ultraflat Floor Drain | Eurodrain / KESSEL

The Ultraflat 54 and Ultraflat 79 floor drain, clever solutions for modern bathrooms. The lowest installation height on the market. Suitable for barrier-free bathrooms. Mechanical odour trap with water reservoir Megastop

Bathroom Drains and Shower Channels | Eurodrain / KESSEL

Bathroom drains, wall drains and shower channels for wastewater drainage with different design covers made of stainless steel

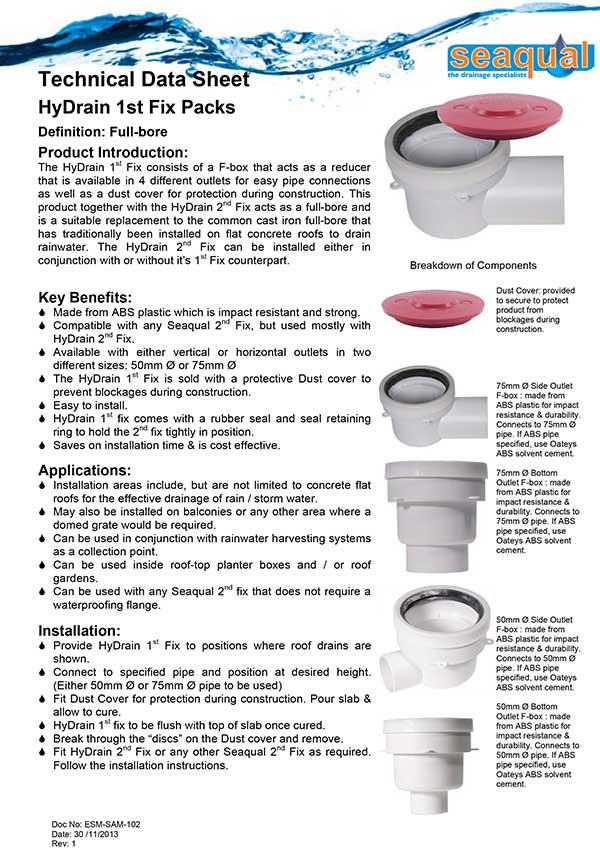

Seaqual HyDrain 1st Fix Packs: Technical Data Sheet

The HyDrain 1st Fix consists of a F-box that acts as a reducer that is available in 4 different outlets for easy pipe connections as well as a dust cover for protection during construction. This product together with the HyDrain 2nd Fix acts as a full-bore and is a suitable replacement to the common cast iron full-bore that has traditionally been installed on flat concrete roofs to drain rainwater.

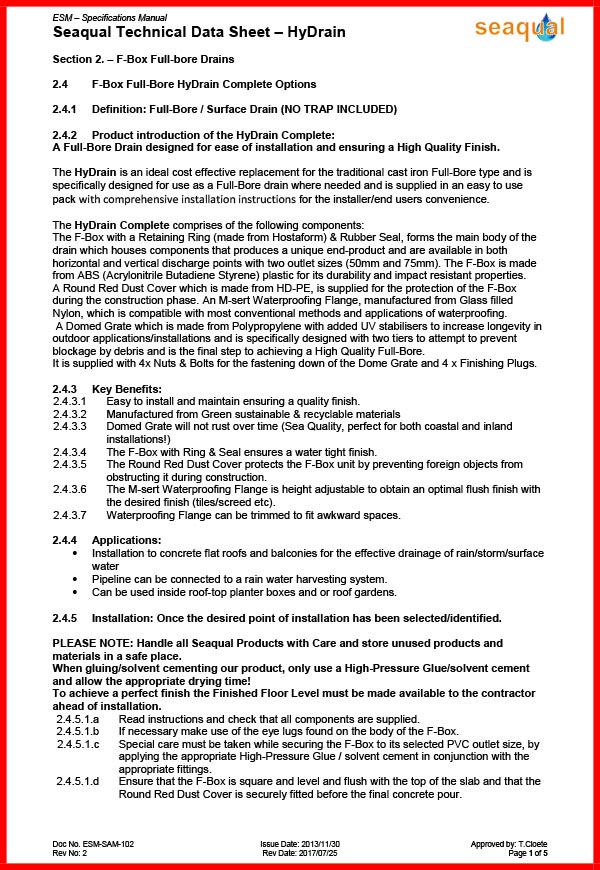

Seaqual Technical Data Sheet - HyDrain Complete Surface Drain

The HyDrain is an ideal cost-effective replacement for the traditional cast iron Full-Bore type and is specifically designed for use as a Full-Bore drain where needed and is supplied in an easy to use pack with comprehensive installation instructions for the installer/end users convenience. The HyDrain Complete comprises of the following components: The F-Box with a Retaining Ring (made from Hostaform) & Rubber Seal, forms the main body of the drain which houses components that produces a unique end-product and are available in both horizontal and vertical discharge points with two outlet sizes (50mm and 75mm). The F-Box is made from ABS (Acrylonitrile Butadiene Styrene) plastic for its durability and impact resistant properties. A Round Red Dust Cover which is made from HD-PE, is supplied for the protection of the F-Box during the construction phase. An M-sert Waterproofing Flange, manufactured from Glass-filled Nylon, which is compatible with most conventional methods and applications of waterproofing. A Domed Grate which is made from Polypropylene with added UV stabilisers to increase longevity in outdoor applications/installations and is specifically designed with two tiers to attempt to prevent blockage by debris and is the final step to achieving a High-Quality Full-Bore. It is supplied with 4x Nuts & Bolts for the fastening down of the Dome Grate and 4 x Finishing Plugs. 2.4.3 Key Benefits: 2.4.3.1 Easy to install and maintain ensuring a quality finish. 2.4.3.2 Manufactured from Green sustainable & recyclable materials 2.4.3.3 Domed Grate will not rust over time (Sea Quality, perfect for both coastal and inland installations!) 2.4.3.4 The F-Box with Ring & Seal ensures a watertight finish. 2.4.3.5 The Round Red Dust Cover protects the F-Box unit by preventing foreign objects from obstructing it during construction. 2.4.3.6 The M-sert Waterproofing Flange is height adjustable to obtain an optimal flush finish with the desired finish (tiles/screed etc). 2.4.3.7 Waterproofing Flange can be trimmed to fit awkward spaces. 2.4.4 Applications: ? Installation to concrete flat roofs and balconies for the effective drainage of rain/storm/surface water ? The pipeline can be connected to a rainwater harvesting system. ? Can be used inside roof-top planter boxes and or roof gardens.

Seaqual VitylDrain 1st Fix Packs: Technical Data Sheet

VitylDrain 1st Fix Packs are the 1st half of a floor drain specifically designed where vinyl flooring has been specified. The 1st Fix comprises a housing device called an F-box that connects to a standard plumbing pipe of either 50mm or 75mm. It is available with both horizontal and vertical outlets.

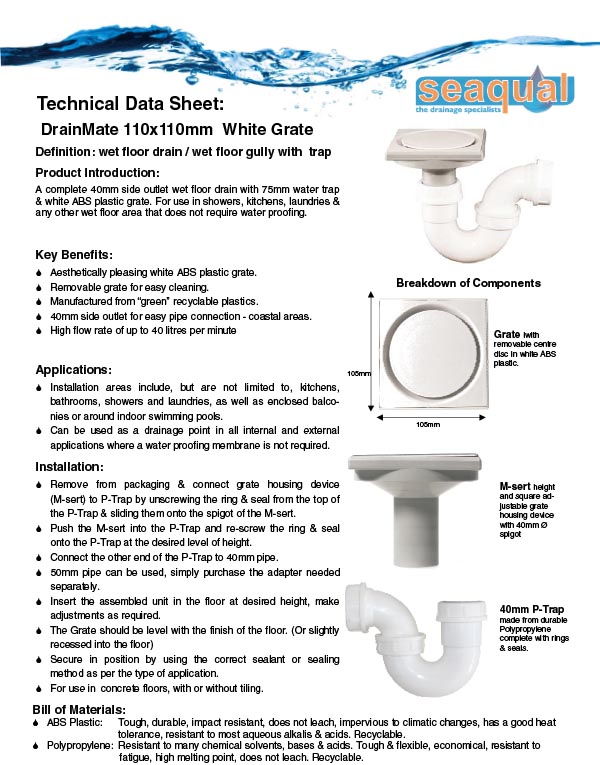

Seaqual DrainMate - White Grate

A complete 40mm side outlet wet floor drain with 75mm water trap & white ABS plastic grate. For use in showers, kitchens, laundries & any other wet floor area that does not require waterproofing.

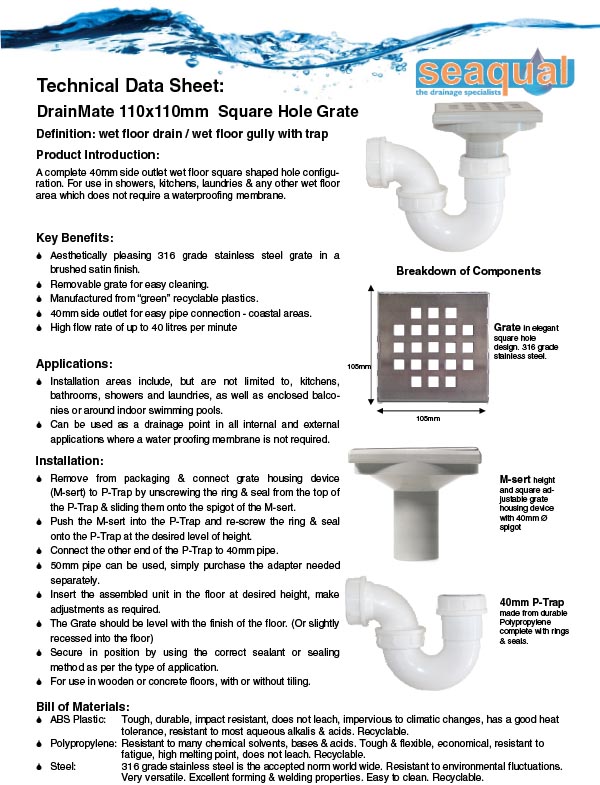

Seaqual DrainMate - Square Hole Grate

A complete 40mm side outlet wet floor square shaped hole configuration.For use in showers, kitchens, laundries & any other wet floor area which does not require a waterproofing membrane.

Seaqual DrainMate - Round Hole Grate

A complete 40mm side outlet wet floor drain with 75mm water trap & 316-grade stainless steel grate with round shaped hole configuration.For use in showers, kitchens, laundries & any other wet floor area which does not require waterproofing.

Seaquals WetFloor 304 - All-in-One: Technical Data Sheet

A complete floor drain for all indoor applications. Includes a 50mm horizontal pipe connection, a 75mm deep water trap which is SANS compliant, a large water-proofing flange and a square hole satin finish 304 grade stainless steel grate. This drain can be installed in all indoor wet floor applications such as showers, wet rooms, laundries, kitchens etc.

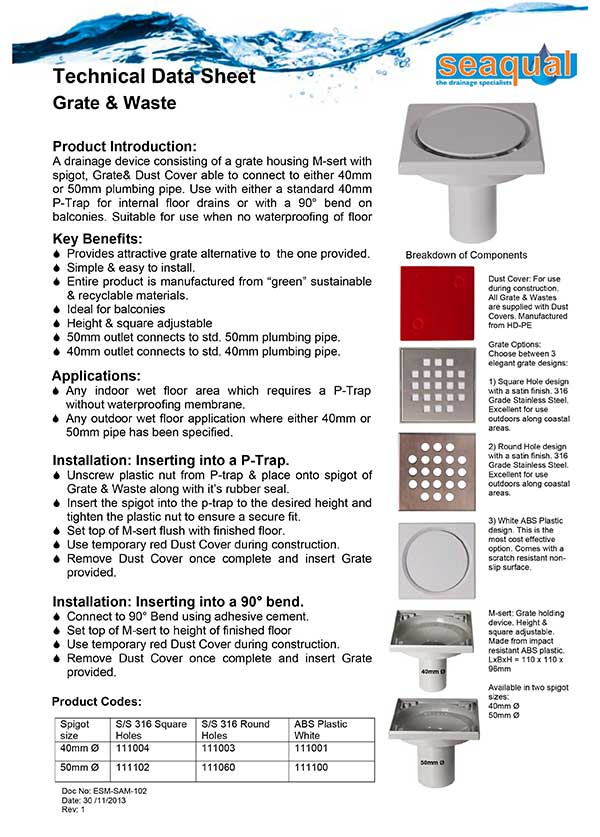

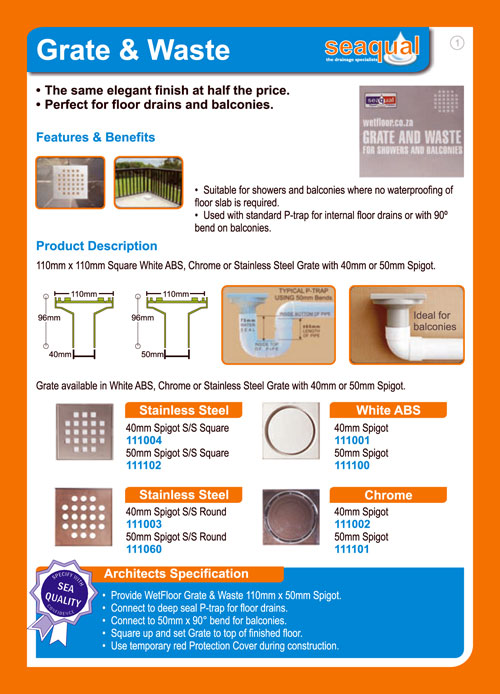

Seaqual Grate & Waste: Technical Data Sheet

A drainage device consisting of a grate housing M-sert with spigot, grate and dust cover able to connect to either 40mm or 50mm plumbing pipe. Use with either a standard 40mm P-Trap for internal floor drains or with a 90° bend on balconies.

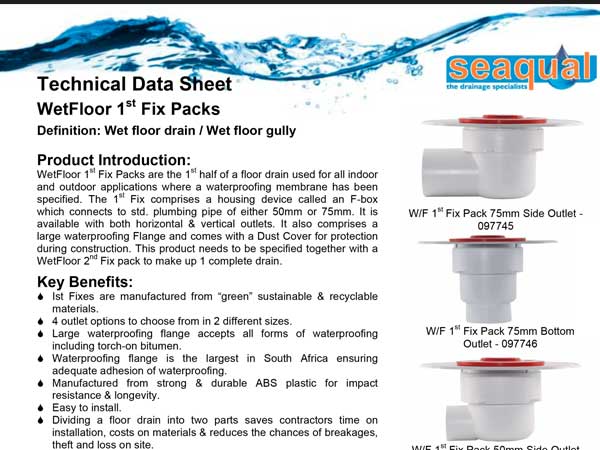

Seaquals WetFloor 1st Fix Packs: Technical Data Sheet

WetFloor 1st Fix Packs are the 1st half of a floor drain used for all indoor and outdoor applications where a waterproofing membrane has been specified. The 1st Fix comprises a housing device called an F-box which connects to a standard plumbing pipe of either 50mm or 75mm. It is available with both horizontal & vertical outlets. It also comprises a large waterproofing flange and comes with a dust cover for protection during construction.

Ultraflat 54 and 79 Floor Shower and Bathroom Drain

The new Ultraflat 54 and Ultraflat 79 floor drain. Clever solutions for modern bathrooms

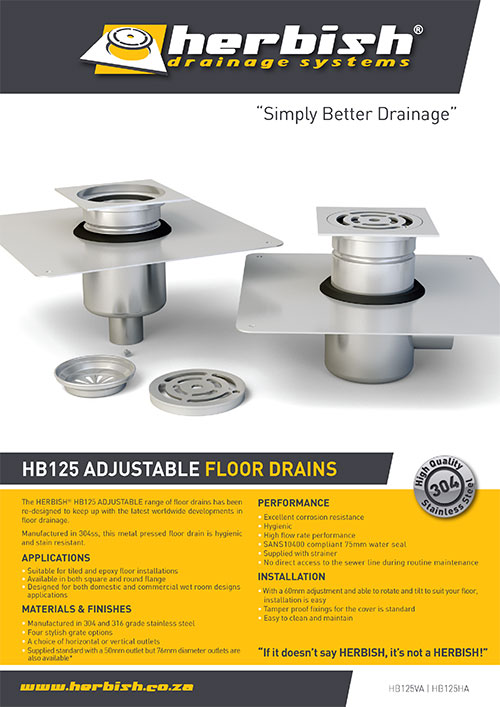

HB 125 Adjustable Floor Drains

The HERBISH® HB125 ADJUSTABLE range of floor drains is manufactured in 304 and 316 grade stainless steel and offers four stylish grate options. This metal pressed floor drain is hygienic and stain resistant.

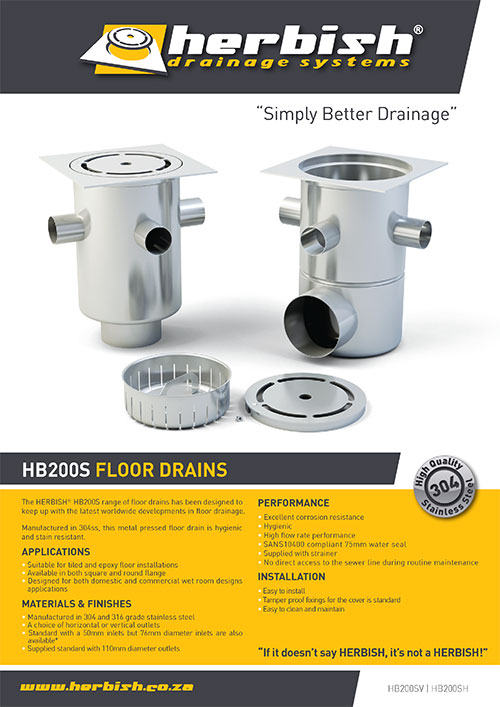

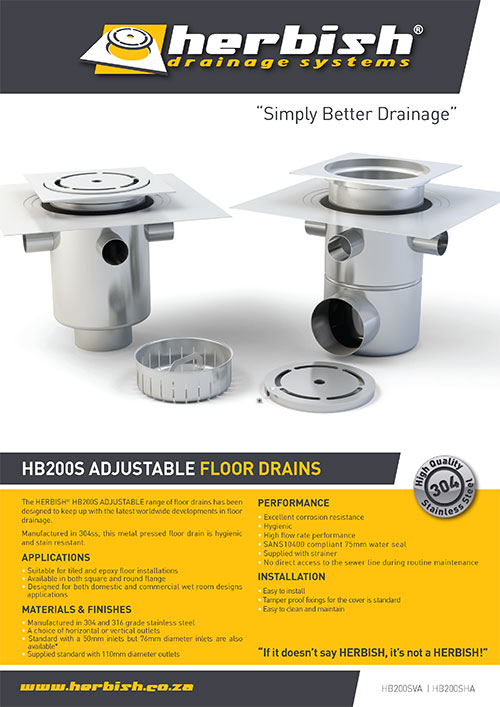

HB200S Adjustable Floor Drains

The HERBISH® HB200S ADJUSTABLE range of floor drains is manufactured in 304ss. This metal pressed floor drain is hygienic and stain resistant. • Suitable for tiled and epoxy floor installations • Available in both square and round flange • Designed for both domestic and commercial wet room applications

HB200S Floor Drains

The HERBISH® HB200S ADJUSTABLE range of floor drains is manufactured in 304ss. This metal pressed floor drain is hygienic and stain resistant. • Suitable for tiled and epoxy floor installations • Available in both square and round flange • Designed for both domestic and commercial wet room applications

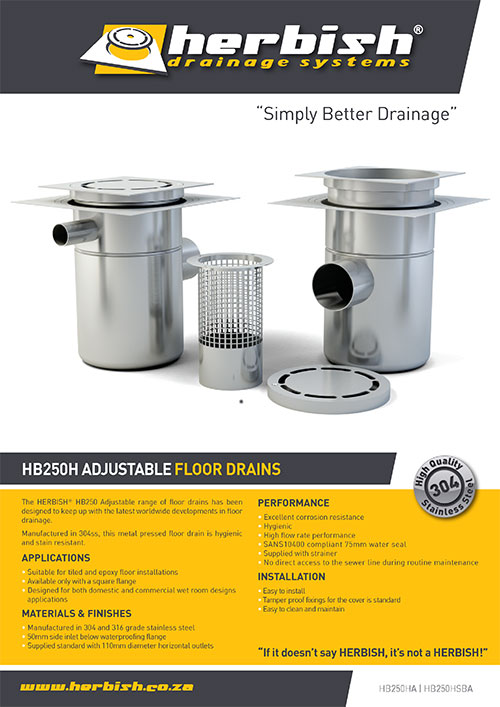

HB250H Adjustable Floor Drains

The HERBISH® HB250 Adjustable range of floor drains is manufactured in 304ss, and is hygienic and stain resistant. • Suitable for tiled and epoxy floor installations • Available only with a square flange • Designed for both domestic and commercial wet room applications

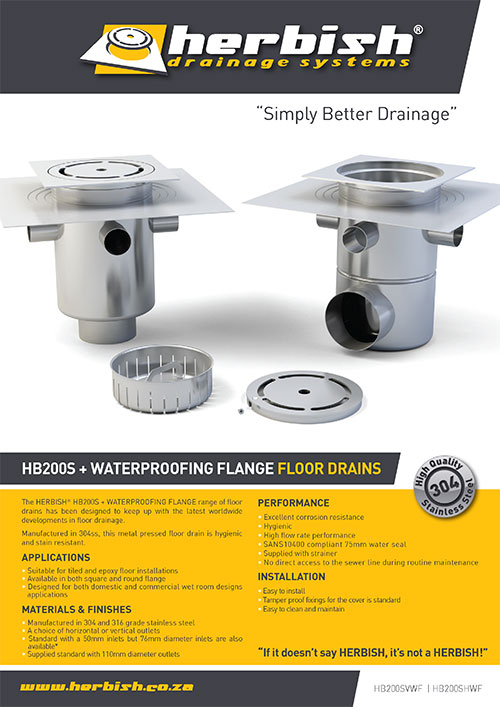

HB200S + Waterproofing Flange Floor Drains

Manufactured in 304ss, this metal pressed floor drain is hygienic and stain resistant. • Suitable for tiled and epoxy floor installations • Available in both square and round flange • Designed for both domestic and commercial wet room applications

Introduces Technodrain

The introduction of the High Density Polyethylene range allows Herbish® to compete in a sector where stainless steel linear drains were, historically, too extravagant and expensive for the  application

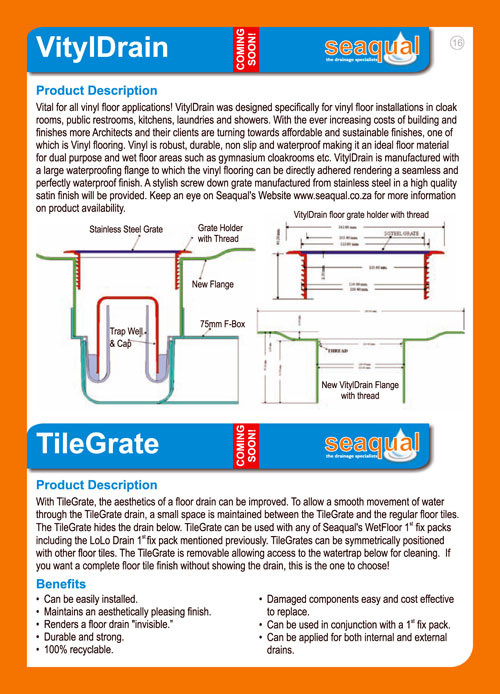

Seaqual VitylDrain

VitylDrain was designed specifically for vinyl floor installations in cloak rooms, public restrooms, kitchens, laundries and showers. VitylDrain is manufactured with a large waterproofing flange to which the vinyl flooring can be directly adhered rendering a seamless and perfectly waterproof finish…

Seaqual LoLo Drain

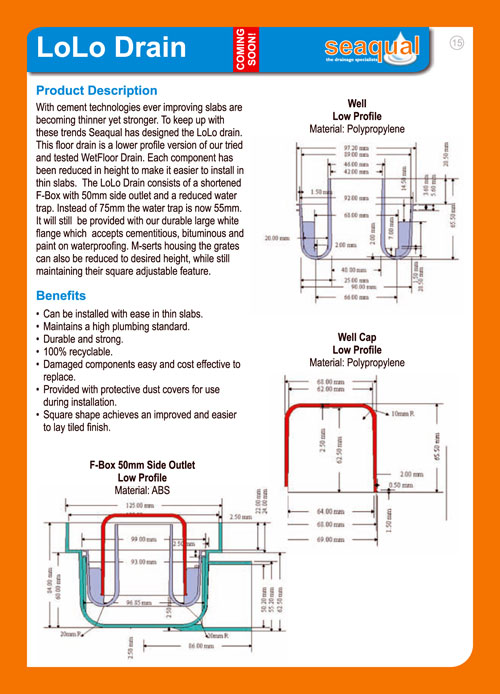

This floor drain is a lower profile version of our tried and tested WetFloor drain. Each component has been reduced in height to make it easier to install in thin slabs. The LoLo drain consists of a shortened F-Box with 50mm side outlet and a reduced water trap.

Seaqual WetFloor Drain

Floor drain suitable for use in showers, bathrooms and kitchens. WetFloor Drain is sold in two parts called: First Fix Pack and Second Fix Pack or as a compact all-in-one drainage system called WetFloor 304.

Seaqual Grate & Waste

Suitable for showers and balconies where no waterproofing of floor slab is required. Used with standard P-trap for internal floor drains or with 90° bend on balconies. Grate available in white ABS, chrome or stainless steel…

abe® Project | Air Liquide

abe® – Air Liquide Gauteng had drainage issues which needed the flooring to be re-levelled with abe.dur.

Oil Trap | OLT 10L/s

Technical Drawing – Oil Trap OLT 10L/s.

Oil Trap | OLT 7L/s

Technical Drawing – Oil Trap OLT 7L/s.

Oil Trap | OLT 5L/s

Technical Drawing – Oil Trap OLT 5L/s.

Oil Trap | OLT 3L/s

Technical Drawing – Oil Trap OLT 3L/s.

Oil Trap | OLT 1L/s

Technical Drawing – Oil Trap OLT 1L/s.

Grease Trap | GTS 1700

Technical Drawing – Grease Trap GTS 1700. The grease trap is designed for both domestic and commercial applications, and is manufactured in 304 and 316 grade stainless steel 1.2mm…

Grease Trap | GTS 700

Technical Drawing – Grease Trap GTS 700. The grease trap is designed for both domestic and commercial applications, and is manufactured in 304 and 316 grade stainless steel 1.2mm…

Grease Trap | GTS 500

Technical Drawing – Grease Trap GTS 500. The grease trap is designed for both domestic and commercial applications, and is manufactured in 304 and 316 grade stainless steel 1.2mm…

Grease Trap | GTS 350

Technical Drawing – Grease Trap GTS 350. The grease trap is manufactured in 304 grade stainless steel and offers excellent corrosion resistance…

Floor Drain | GTS 280

Unique full flow floor trap with the following features: Manufactured from stainless steel 304 to ensure acid corrosion and stain resistance, A double water seal to ensure odour-free operation, Smooth surfaces for easy cleaning, minimum dirt collection and high flow rates, A large sludge box which retains all the coarse slurry, Easy to dismantle…

Floor Drain | GTS 200 V

Unique full flow floor trap with the following features: Manufactured from stainless steel 304 to ensure acid corrosion and stain resistance, A double water seal to ensure odour-free operation, Smooth surfaces for easy cleaning, minimum dirt collection and high flow rates, A large sludge box which retains all the coarse slurry, Easy to dismantle…

Floor Drain | GTS 125 V

Unique full flow floor trap with the following features: Manufactured from stainless steel 304 to ensure acid corrosion and stain resistance, A single water seal to ensure odour-free operation, Smooth surfaces for easy cleaning, minimum dirt collection and high flow rates, The discharge pipe is fully accessible once the drain has been dismantled…

Grease Traps | GTS 10L

Technical Drawing – Grease Trap GTS 10L. The grease trap is designed for both domestic and commercial applications, and is manufactured in 304 and 316 grade stainless steel 1.2mm…

Grease Trap | GTS 7L/s

Technical Drawing – Grease Trap GTS 7L/s. The grease trap is designed for both domestic and commercial applications, and manufactured in 304 and 316 grade stainless steel 1.2mm…

Grease Trap | GTS 4L/s

Technical Drawing – Grease Trap GTS 4L/s. The grease trap is designed for both domestic and commercial applications, and is manufactured in 304 and 316 grade stainless steel 1.2mm…

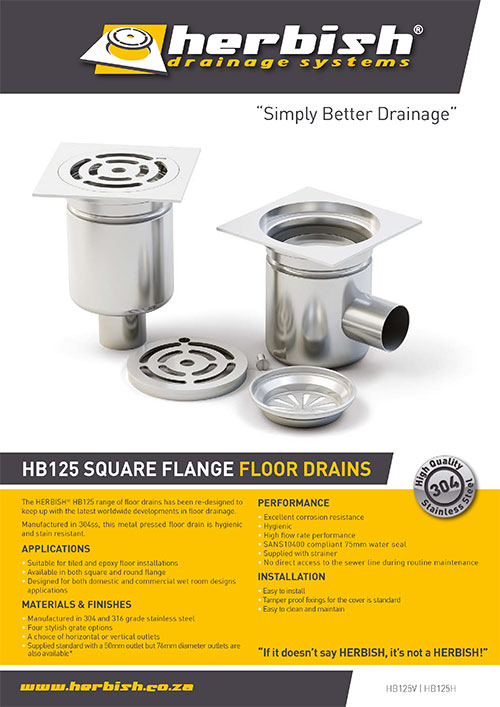

HB125 Square Flange | Floor Drains | Herbish Drainage Systems

The HERBISH® HB125 range of floor drains • Manufactured in 304 and 316 grade stainless steel • Four stylish grate options • A choice of horizontal or vertical outlets • Supplied standard with a 50mm outlet but 76mm diameter outlets are also available

HB280S Square Flange | Floor Drains | Herbish Drainage Systems

The HERBISH® HB280S + WATERPROOFING FLANGE range of floor drains has • Excellent corrosion resistance • Hygienic • High flow rate performance • SANS10400 compliant 75mm water seal • Supplied with strainer • No direct access to the sewer line during routine maintenance

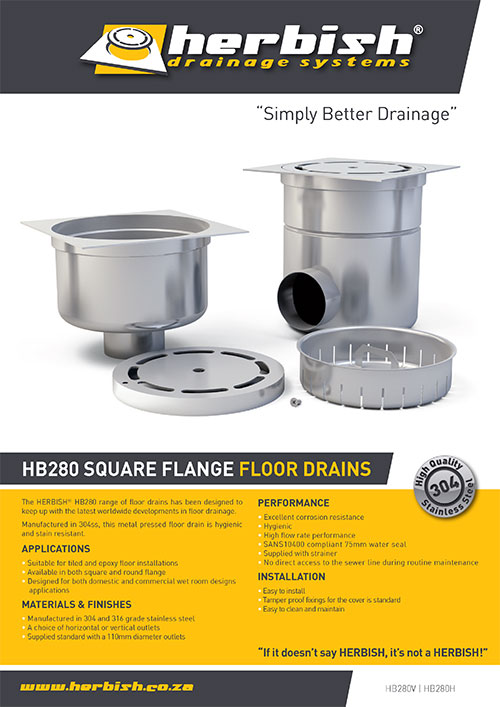

HB280 Square Flange | Floor Drains | Herbish Drainage Systems

The HERBISH® HB280 range of floor drains • Suitable for tiled and epoxy floor installations • Available in both square and round flange • Designed for both domestic and commercial wet room applications • Manufactured in 304 and 316 grade stainless steel • A choice of horizontal or vertical outlets • Supplied standard with a 110mm diameter outlets

HB280 + Waterproofing Flange | Floor Drains | Herbish Drainage Systems

Manufactured in 304ss, this metal pressed floor drain is hygienic and stain resistant. • Suitable for tiled and epoxy floor installations • Available in both square and round flange • Designed for both domestic and commercial wet room designs applications
